Adapting your fishing rod: shortening a blank

© Thierry Cendrier

The range of blanks on the market is immense, but since rodbuilding has no limits, shortening a blank is a very simple operation that you may one day want to carry out... Here's how!

Because you want to repair a broken rod, shorten a rod you already own, transform a single-strand rod into a 2-strand rod to integrate a spigot, or because the blank you covet for all its intrinsic qualities is a few centimetres too long... So many good reasons to recut your blank.

Doing this operation properly is child's play, for which you'll need :

  • painter's tape
  • sandpaper
  • white pencil (optional)
  • a Dremel (mini electric saw) or hacksaw
  • 5 minutes of available time...

Step 1

Raccourcir sa canne pour la pêche
Shortening your fishing rod

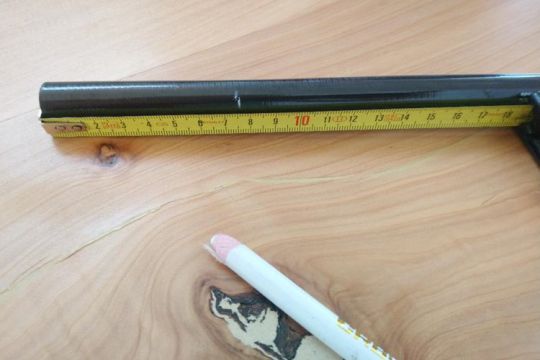

Note the measurement with your white pencil where you want to cut your blank.

Step 2

Raccourcir sa canne pour la pêche
Shortening your fishing rod

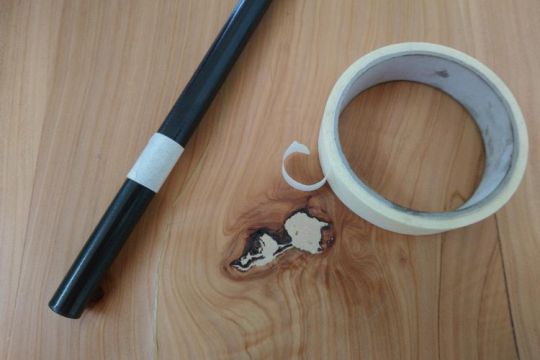

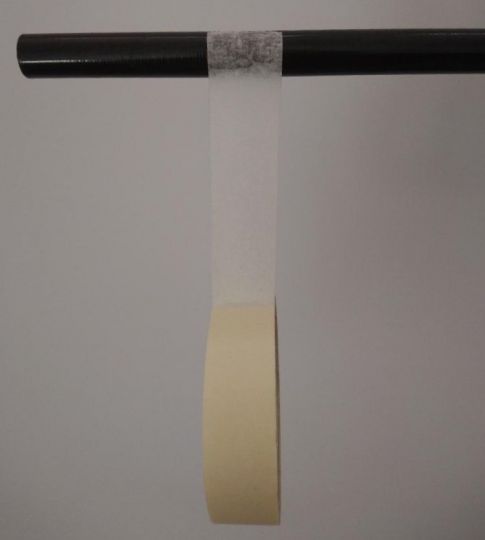

Mark out the cutting area with painter's tape. This will serve as a reference to help you cut the blank straight. Ideally, you should use gravity to ensure that your tape is parallel to the blank's cross-section.

Step 3

Raccourcir sa canne pour la pêche
Shortening your fishing rod

Make a few turns to create a thickness that serves as a guide. You can even do the same thing on either side of the area you wish to cut to create a "throat".

Step 4

Raccourcir sa canne pour la pêche
Shortening your fishing rod

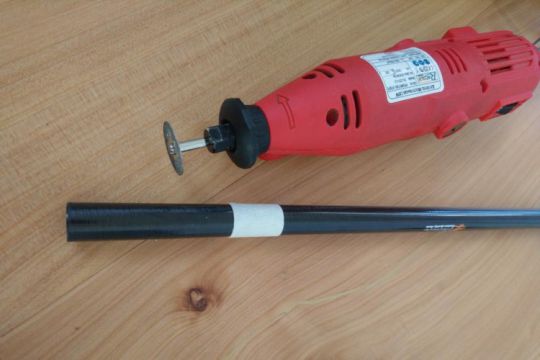

Set the Dremel to low speed or take your hacksaw.

Step 5

Raccourcir sa canne pour la pêche
Shortening your fishing rod

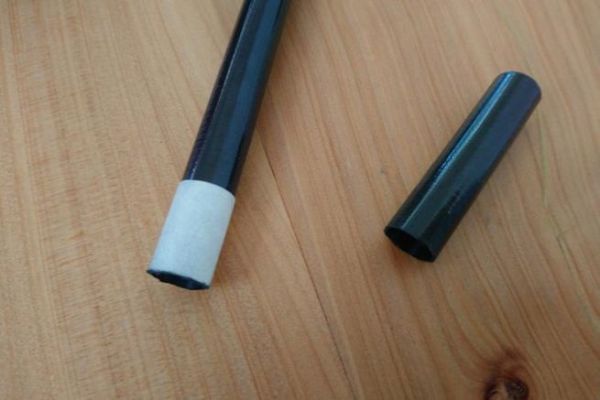

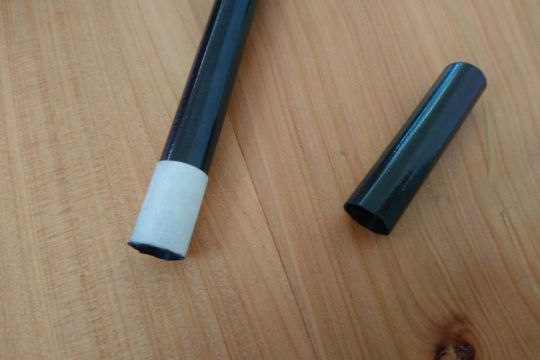

Cut along the painter's tape, so that the cut is clean and parallel to the blank section (or perpendicular, depending on how you look at it...).

The cut is now complete.

Step 6

Raccourcir sa canne pour la pêche
Shortening your fishing rod

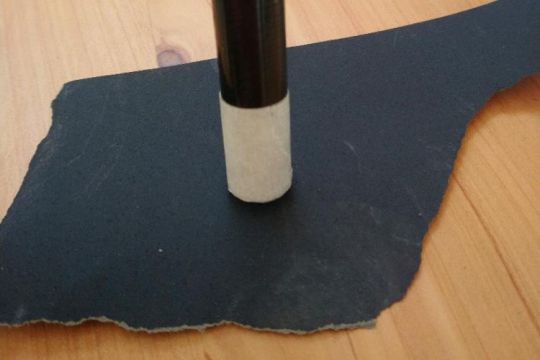

Sand (flat) the cut part so that it is clean and no carbon fibers protrude.

Final rendering

Raccourcir sa canne pour la pêche
Shortening your fishing rod

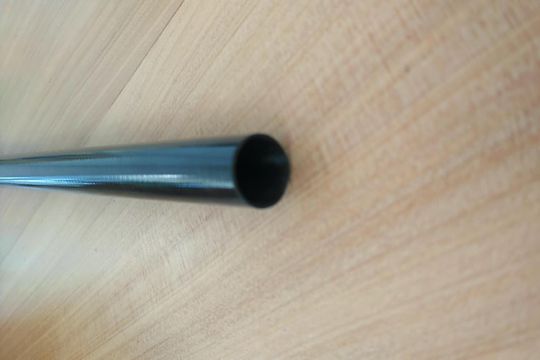

And that's it, the job's done and your blank is the length you want!

As you can see, shortening a blank is child's play. So if you've got a blank in your sights and it doesn't have exactly the characteristics you want, a trim is a quick and easy operation.
