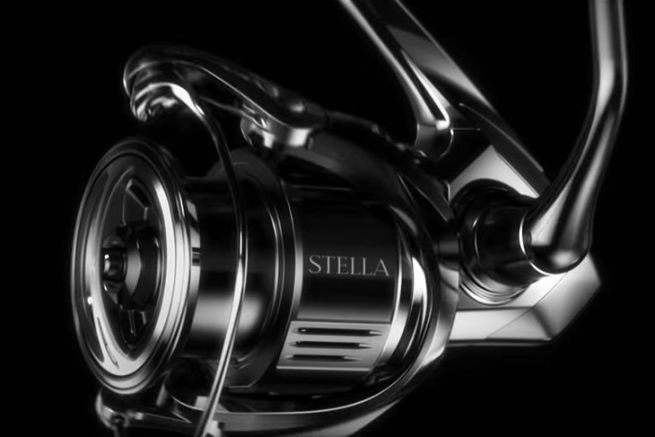

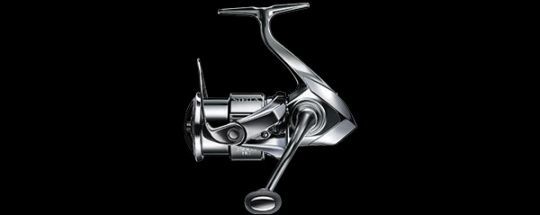

The new Stella FK from Shimano is coming in the year 2022. The range presents sizes 1000, 2000, 2500, 3000, 4000 and 5000 with many specificities according to the references.
A reel of this level of quality deserves a particular attention and we propose to you to dissect the range to extract the technical specificities reference by reference. It is the flagship of the brand, and also the world market reel for many fishermen.
Understand the references of the reels
Some references have a C before the size. For example C2000S. This is short for "Compact". The reel has a small body, one size smaller than the one indicated, while the rotor and spool are the same size as the reel reference. This allows for a small reel with a larger spool that usually has more line capacity.
The H, for example on the C2000SHG size, stands for "High" in reference to the fast ratio. The X stands for "Extra high" for ultra-fast ratio.
The D, for example on the C3000SDH size, is for "double" for the double crank.
The S stands for "Shallow", a literal translation of "shallow" for the low-capacity coil.
Stella FK 1000SSPG
- Coil: width 40 mm, height 13.5 mm
- Rotor: size #1000, in Magnesium
- Body: size #1000, in Magnesium
- Ratio: 4.4
- Brake: 2.0 kg, max brake: 3.0 kg
- Weight: 165 g
- Line capacity of the coil
- Nylon: 115m/2lb - 100m/2.5lb - 70m/3lb
- Fluorocarbon: 90m/2lb - 80m/2.5lb - 65m/3lb
- Braid: 140m/PE0.3 - 100m/PE0.4 - 80m/PE0.6
- Recovery: 55 cm per crank turn
- Crank: 35 mm
- Handle: form I
- Bearings : 12+1
Stella FK C2000S
- Coil: width 43 mm
H 13.5 mm - Rotor: size C2500, in Magnesium
- Body: size 1000, in Magnesium
- Ratio: 5.1
- Brake: 2.0 kg, max brake: 3.0 kg
- Weight: 170 g
- Line capacity of the coil
- Nylon: 125m/3lb - 100m/4lb - 75m/5lb
- Fluorocarbon : 110m/3lb - 85m/4lb - 65m /5lb
- Braid: 150m/PE#0.6 - 110m/PE#0.8 - 80m/PE#1
- Recovery: 69 cm per crank turn
- Crank: 40mm per crank turn
- Handle: form I
- Bearings : 12+1
Stella FK C2000SHG
- Coil: width 43 mm, height 13.5 mm
- Rotor: size C2500, in Magnesium
- Body: size 1000, in Magnesium
- Ratio: 6.0
- Brake: 2.0 kg, max brake: 3.0 kg
- Weight: 170 g
- Line capacity of the coil
- Nylon: 125m/3lb - 100m/4lb - 75m/5lb
- Fluorocarbon : 110m/3lb - 85m/4lb - 65m/5lb
- Braid: 150m/PE#0.6 - 110m/PE#0.8 - 80m/PE#1
- Recovery: 81 cm per crank turn
- Crank: 45 mm
- Handle: shape Y
- Bearings : 12+1
Stella FK C2500S
- Coil: width 44 mm, height 13.5 mm
- Rotor: size C2500, in Magnesium
- Body: size 1000, in Magnesium
- Ratio: 5.1
- Brake: 2.0 kg, max brake: 3.0 kg
- Weight: 175 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 70 cm per crank turn
- Crank: 45 mm
- Handle: shape Y
- Bearings : 12+1
Stella FK C2500SXG
- Coil: width 44 mm, height 13.5 mm
- Rotor: size C2500, in Magnesium
- Body: size 1000, in Magnesium
- Ratio: 6.3
- Brake: 2.0 kg, max brake: 3.0 kg
- Weight: 175 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 87 cm per crank turn
- Crank: 45 mm
- Handle: shape Y
- Bearings : 12+1
Stella FK 2500S
- Coil: width 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 5.1
- Brake: 2.5 kg, max brake: 4.0 kg
- Weight: 205 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 75 cm per crank turn
- Crank: 50 mm
- Handle: shape Y
- Bearings : 12+1
Stella FK 2500SHG
- Coil: width 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 5.8
- Brake: 2.5 kg, max brake: 4.0 kg
- Weight: 205 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 86 cm per crank turn
- Crank: 55 mm
- Handle: shape Y
- Bearings : 12+1

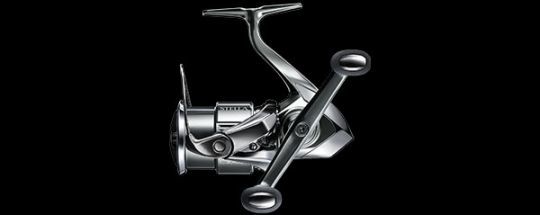

Stella FK C3000SDH
- Coil: 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 5.1
- Brake: 6.0 kg, max brake: 9.0 kg
- Weight: 220 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 75 cm per crank turn
- Crank: 45 mm
- Handle: shape Y
- Bearings : 14+1
Stella FK C3000SDHHG
- Coil: width 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 5.8
- Brake: 6.0 kg, max brake: 9.0 kg
- Weight: 220 g
- Line capacity of the coil
- Nylon : 110m/5lb - 95m/6lb - 70m/8lb
- Fluorocarbon : 130m/4lb - 100m/5lb - 80m/6lb
- Braid: 200m/PE#0.6 - 150m/PE#0.8 - 120m/PE#1
- Recovery: 86 cm per crank turn
- Crank: 45 mm
- Handle: shape Y
- Bearings : 14+1
Stella FK C3000MHG
- Coil: width 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 5.8
- Brake: 6.0 kg, max brake: 9.0 kg
- Weight: 210 g
- Line capacity of the coil
- Nylon : 130m/8lb - 110m/10lb - 85m/12lb
- Fluorocarbon : 110m/8lb - 90m/10lb - 80m/12lb
- Braid: 190/PE#1 - 150m/PE#1.2 - 120m/PE#1.5
- Recovery: 86 cm per crank turn
- Crank: 55 mm
- Handle: shape T #S
- Bearings : 12+1
Stella FK C3000XG
- Coil: width 47 mm, height 17 mm
- Rotor: size 2500, in Aluminium
- Body: size 2500, in Magnesium
- Ratio: 6.4
- Brake: 6.0 kg, max brake: 9.0 kg
- Weight: 210 g
- Line capacity of the coil
- Nylon : 180m/2.5lb -150m/3lb - 100m/4lb
- Fluorocarbon : 160m/2.5lb - 130m/3lb - 100m/4lb
- Braid: 400m/PE#1 - 270m/PE#1.5 - 200m/PE#2
- Recovery: 94 cm per crank turn
- Crank: 55 mm
- Handle: shape T #S
- Bearings : 12+1
Stella FK 3000MHG
- Coil: width 47 mm, height 17 mm
- Rotor: size #2500, in Aluminium
- Body: size 4000, in Magnesium
- Ratio: 5.7
- Brake: 6.0 kg, max brake: 9.0 kg
- Weight: 235 g
- Line capacity of the coil
- Nylon : 130m/8lb - 110m/10lb - 85m/12lb
- Fluorocarbon : 110m/8lb - 90m/10lb - 80m/12lb
- Braid: 190/PE#1 - 150m/PE#1.2 - 120m/PE#1.5
- Recovery: 84 cm per crank turn
- Crank: 55 mm
- Handle: shape T #S
- Bearings : 12+1
Stella FK 4000M
- Coil: width 52 mm, height 19 mm
- Rotor: size 4000, in Aluminium
- Body: size 4000, in Magnesium
- Ratio: 5.3
- Brake: 7.0 kg, max brake: 11.0 kg
- Weight: 260 g
- Line capacity of the coil
- Nylon: 160m/2.5lb - 120m/3lb - 90m/4lb
- Fluorocarbon : 110m/3lb - 90m/4lb - 65m/5lb
- Braid: 250m/PE#1.2 - 200m/PE#1.5 - 150m/PE#2
- Recovery: 87 cm per crank turn
- Crank: 55 mm
- Handle: form T #M
- Bearings : 12+1
Stella FK 4000MHG
- Coil: width 52 mm, height 19 mm
- Rotor: size 4000, in Aluminium
- Body: size 4000, in Magnesium
- Ratio: 5.7
- Brake: 7.0 kg, max brake: 11.0 kg
- Weight: 260 g
- Line capacity of the coil
- Nylon: 160m/2.5lb - 120m/3lb - 90m/4lb
- Fluorocarbon : 110m/3lb - 90m/4lb - 65m/5lb
- Braid: 250m/PE#1.2 - 200m/PE#1.5 - 150m/PE#2
- Recovery: 93 cm per crank turn
- Crank: 55 mm
- Handle: form T #M
- Bearings : 12+1
Stella FK 4000XG
- Coil: width 52 mm, height 19 mm
- Rotor: size 4000, in Aluminium
- Body: size 4000, in Magnesium
- Ratio: 6.2
- Brake: 7.0 kg, max brake: 11.0 kg
- Weight: 260 g
- Line capacity of the coil
- Nylon : 170m/3.5lb - 150m/4lb - 125m/5lb
- Fluorocarbon : 190m/3lb - 145m/4lb - 115m/5lb
- Braid: 490m/PE#1 - 320m/PE#1.5 - 240m/PE#2
- Recovery: 101 cm per crank turn
- Crank: 57 mm
- Handle: form T #M
- Bearings : 12+1
Stella FK C5000XG
- Coil: width 52 mm, height 19 mm
- Rotor: size 4000, in Aluminium
- Body: size 4000, in Magnesium
- Ratio: 6.2
- Brake: 7.0 kg, max brake: 11.0 kg
- Weight: 260 g
- Line capacity of the coil
- Nylon : 190m/PE4 - 150m/5lb - 125m/6lb
- Fluorocarbon : 170m/4lb - 135m/5lb - 115m/6lb
- Braid: 400m/PE#1.5 - 300m/PE#2 - 200m/PE#3
- Recovery: 101 cm per crank turn
- Crank: 57 mm
- Handle: shape O alu (round aluminium handle)
- Bearings : 12+1
